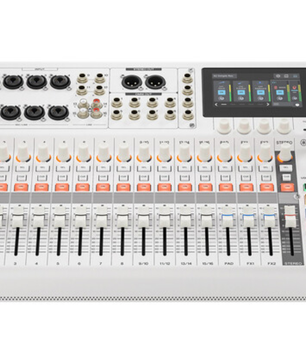

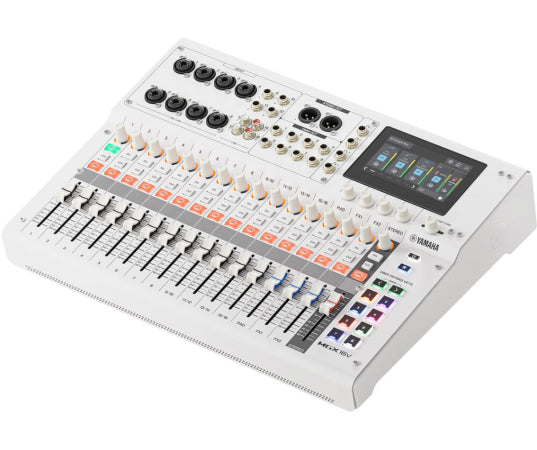

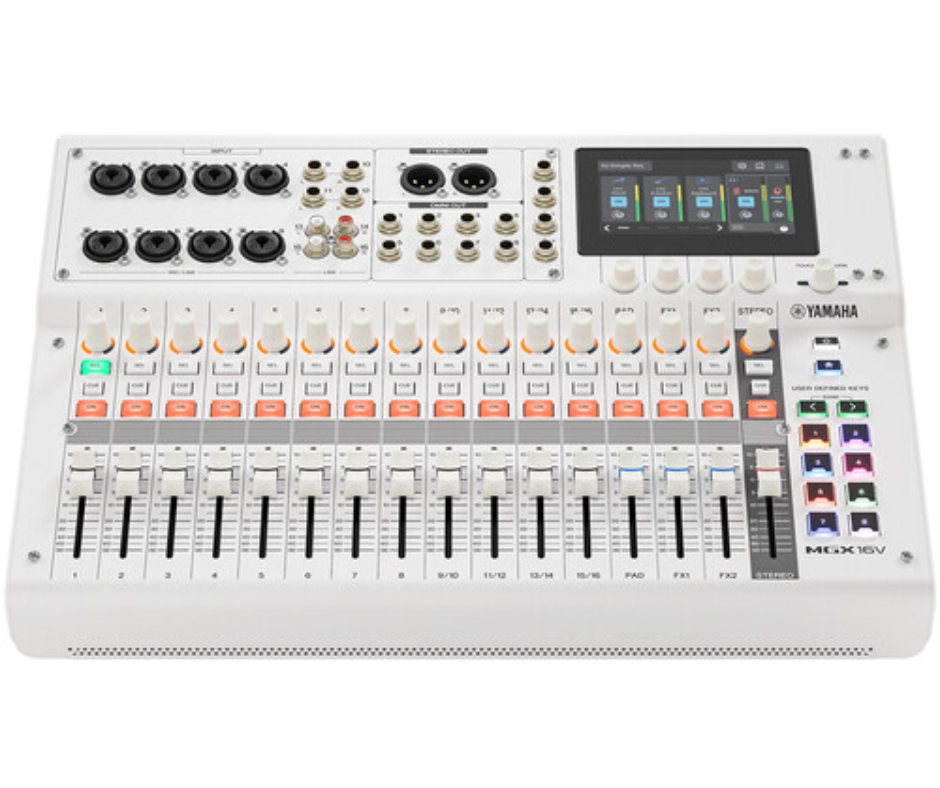

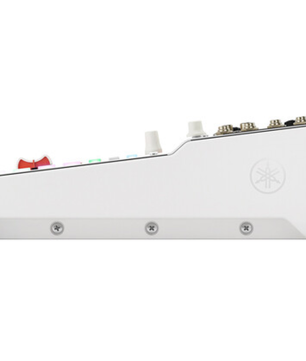

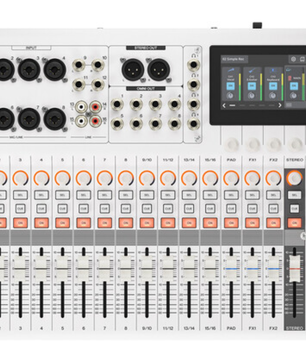

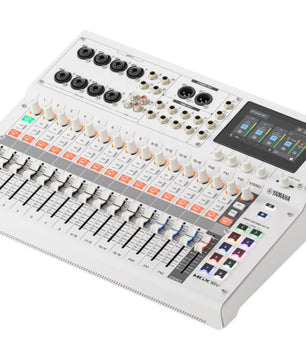

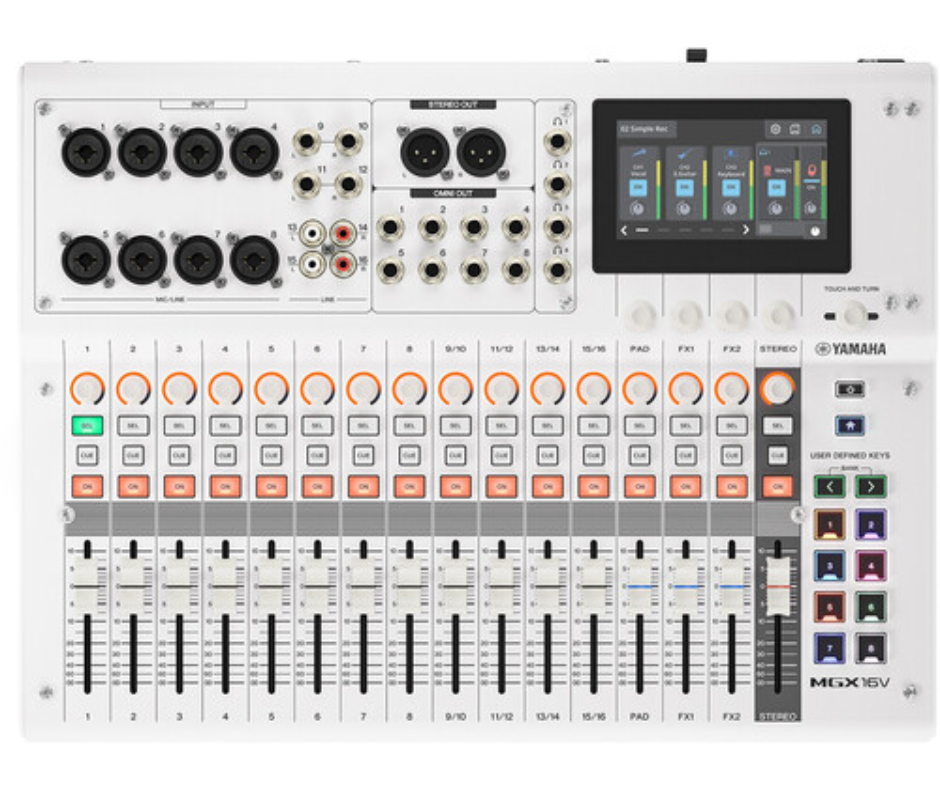

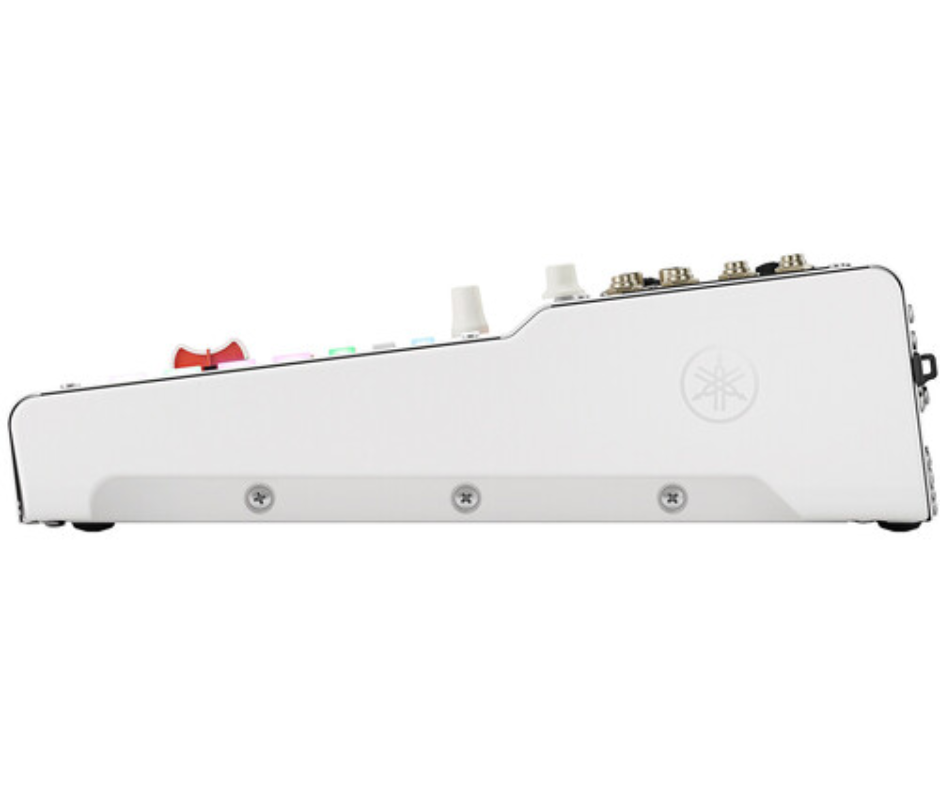

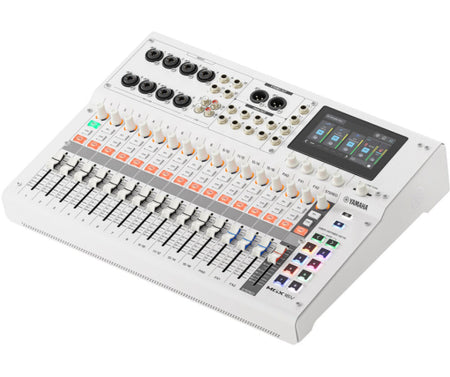

Yamaha MGX16V W | 22-Channel Digital Mixer with HDMI & USB | White Finish with Touchscreen, FX, and Stems-Ready Workflow

Digital Mixer with HDMI & USB for Live Sound and Streaming

The Yamaha MGX16V W is a high-performance 22-channel digital mixer designed for hybrid AV applications, podcasting, live sound, and streaming. Featuring dual USB audio interfaces, HDMI video capture/pass-through, Bluetooth input, and touchscreen-based control, this advanced console delivers broadcast-quality results with intuitive operation—now in a striking white finish.

Yamaha MGX16V W Competitive Differences

• HDMI I/O for 4K60 video capture and pass-through, perfect for streaming setups
• Dual USB-C ports: 18x18 and 2x2 multitrack audio interfaces for flexible routing

Yamaha MGX16V W Description

The Yamaha MGX16V W is the flagship in Yamaha’s MGX digital mixer lineup, combining studio-grade audio fidelity with multimedia integration features that meet the needs of modern creators and technicians. Ideal for hybrid events, content creators, or professional AV installs, it brings together HDMI I/O, 4 mic/line preamps, 14 outputs, and extensive onboard processing in a portable, rack-mountable format. With 16 motorized faders, a 4.3" touchscreen, and the intuitive “Touch and Turn” control knob, navigating scenes, EQs, FX, and routing is quick and responsive. Its mic preamps deliver 86 dB of clean gain with a 125 dB dynamic range at output—ensuring premium sound for any voice or instrument. Eight customizable sound pads, intelligent assistive tools (Smart Gain, Clip Safe, Scene Recall), and a library of FX including ducking, reverb, multi-band compression, amp simulators, and voice changers give users creative freedom and workflow flexibility. Built-in Bluetooth and microSD recording make it ideal for untethered setups. Meanwhile, the HDMI-USB interface lets users capture or stream synced video and audio with minimal external gear—supporting up to 4K60 capture and pass-through.

Model Features

• 22-channel digital mixer with HDMI capture and pass-through
• Dual USB-C ports: 18-in/18-out MAIN and 2-in/2-out SUB
• Bluetooth 5.0 audio input for mobile playback and streaming
• microSD card recording: up to 16-track record / 2-track playback
• 8 mono and 4 stereo input channels, plus Sound Pad and FX
• 16 motorized faders and 4.3" touchscreen GUI
• Built-in FX: Reverb, Delay, Gate, Morphing EQ, Amp Sim, Voice Changer
• Smart Gain, Clip Safe, Scene Recall, Ducker, Multi-band Compressor
• White finish for sleek visual integration in modern AV spaces
• Includes software: Steinberg Cubase AI, WaveLab Cast LE, MixKey

Model Specifications

• Max I/O Capacity: 16 input / 14 output
• Mic Preamps: 8x Combo XLR-1/4" TRS
• Line Inputs: 4x 1/4" TRS + 2x RCA stereo
• Main Outputs: 2x XLR
• Other Outputs: 8x 1/4" TRS bus + 4x 1/4" headphone
• USB I/O:
  • USB MAIN: 18x18 (multitrack, 32-bit, 96 kHz)
  • USB SUB: 2x2 (record/playback, control, external memory)

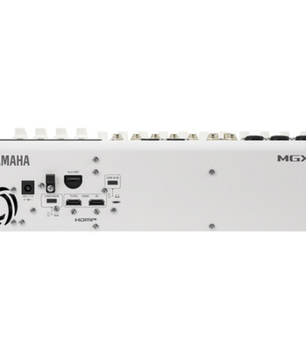

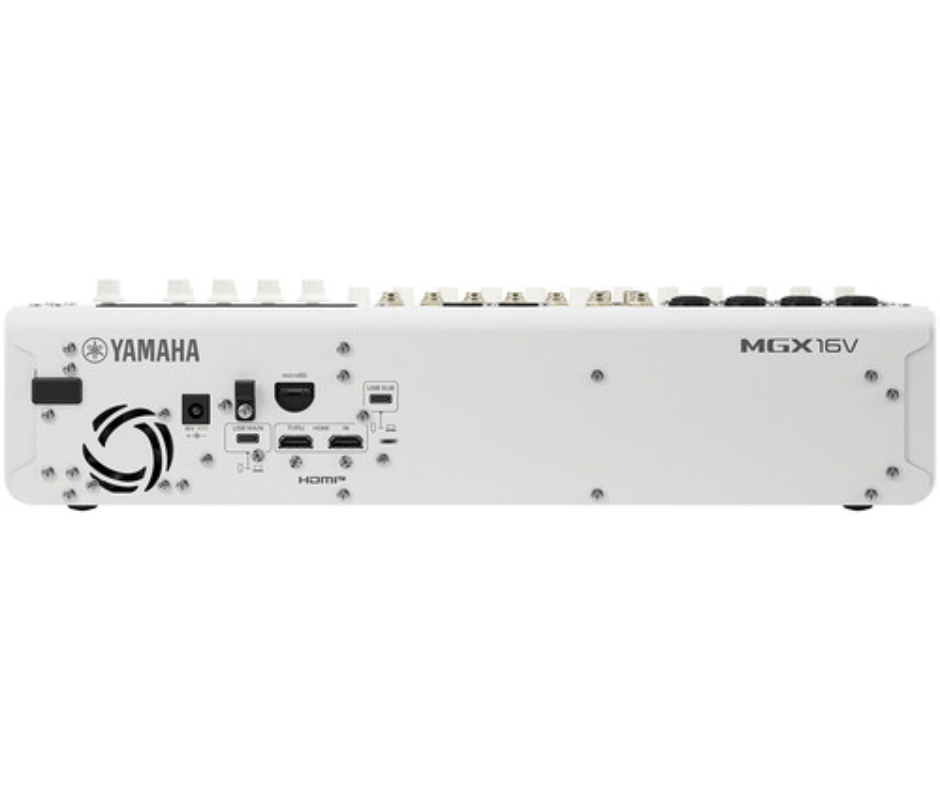

• HDMI I/O: 2x HDMI (IN/THRU) – 4K60 capture & pass-through
• Recording: SDHC card, 16-track max (MP3/WAV)
• Display: 4.3" LCD touchscreen
• Faders: 16 motorized 60 mm channel faders
• Built-in FX: 11 stereo effect types
• Gain Range: 0 dB to +86 dB
• Dynamic Range: 125 dB output / 115 dB input-to-output
• Frequency Response: 20 Hz to 20 kHz (+1/-2 dB)
• Headphone Output Power: 100 mW per channel into 40Ω
• Noise Floor: -108 dBu
• THD: < 0.002% at min gain (+4 dBu)
• Rack Mountable: Yes
• Power: 16 VDC @ 2.4A or 100–240V AC
• Dimensions: 16.5 x 3.8 x 12.5 in (419.1 x 96.5 x 317.5 mm)
• Weight: 10.8 lb (4.9 kg)

What's In The Box

• Yamaha MGX16V W digital mixer (white)
• Power adapter
• Steinberg software license card
