USB Audio Interface
Yamaha URX22 B is a feature-rich 4-in/2-out USB-C audio interface designed for content creators, streamers, and musicians who demand professional-grade sound and flexible workflow control. With onboard DSP effects, dual USB connections, and intuitive touch-panel operation, it provides a powerful platform for streaming, podcasting, and music production.
Yamaha URX22 B Competitive Differences
- 32-bit / 192 kHz audio resolution with ultra-low THD
- Dual USB-C ports for advanced routing and flexible connectivity
Yamaha URX22 B Description
The Yamaha URX22 B offers pristine sound quality with 32-bit / 192 kHz conversion and powerful DSP effects for real-time processing. From compression and EQ to reverb, amp simulation, and voice pitch effects, users can shape their audio without the need for external software plugins.

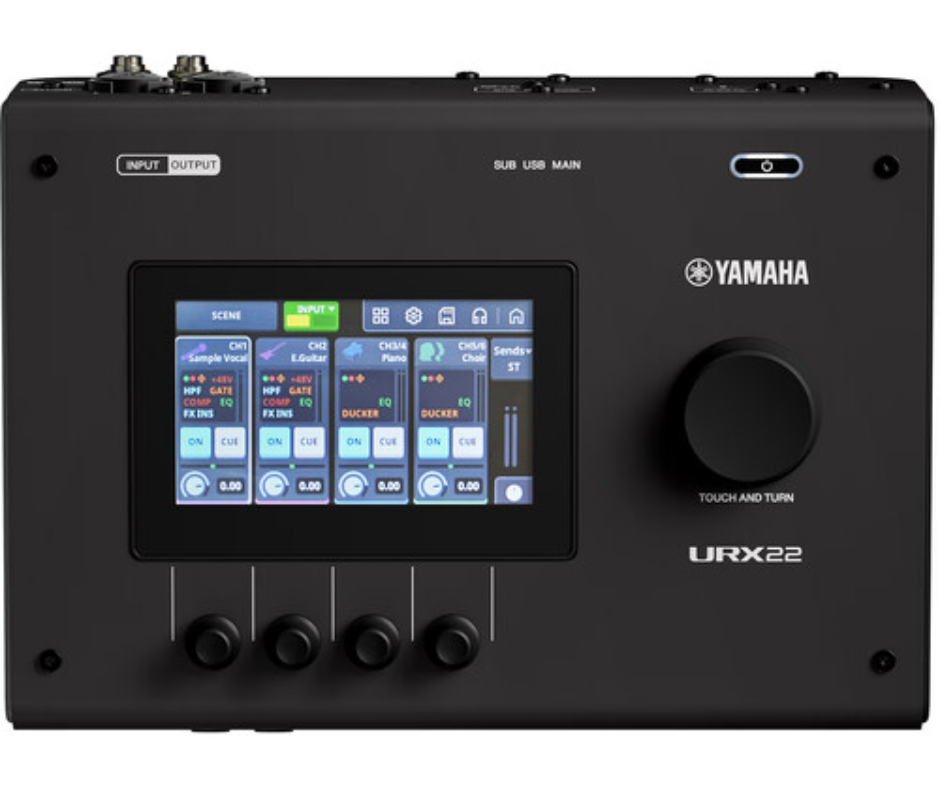

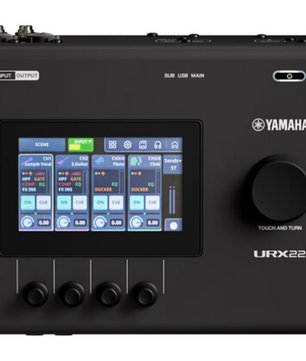

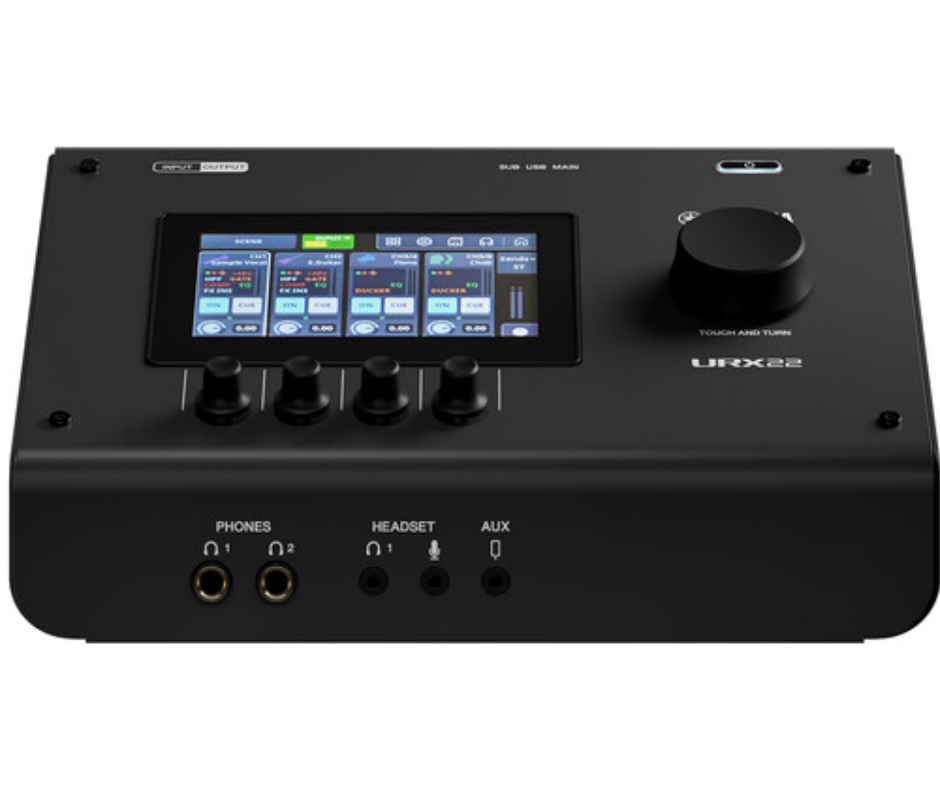

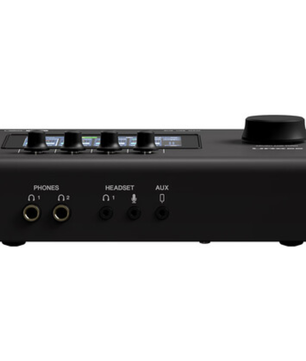

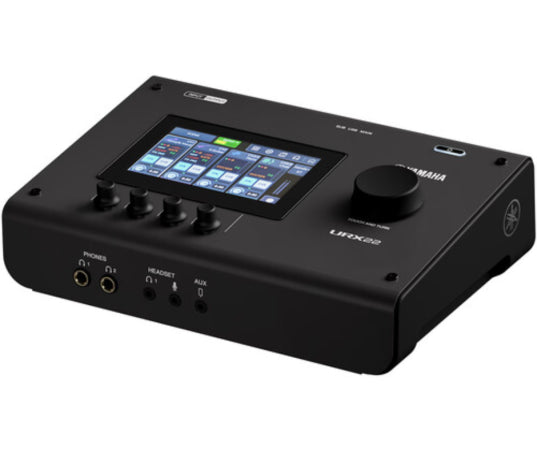

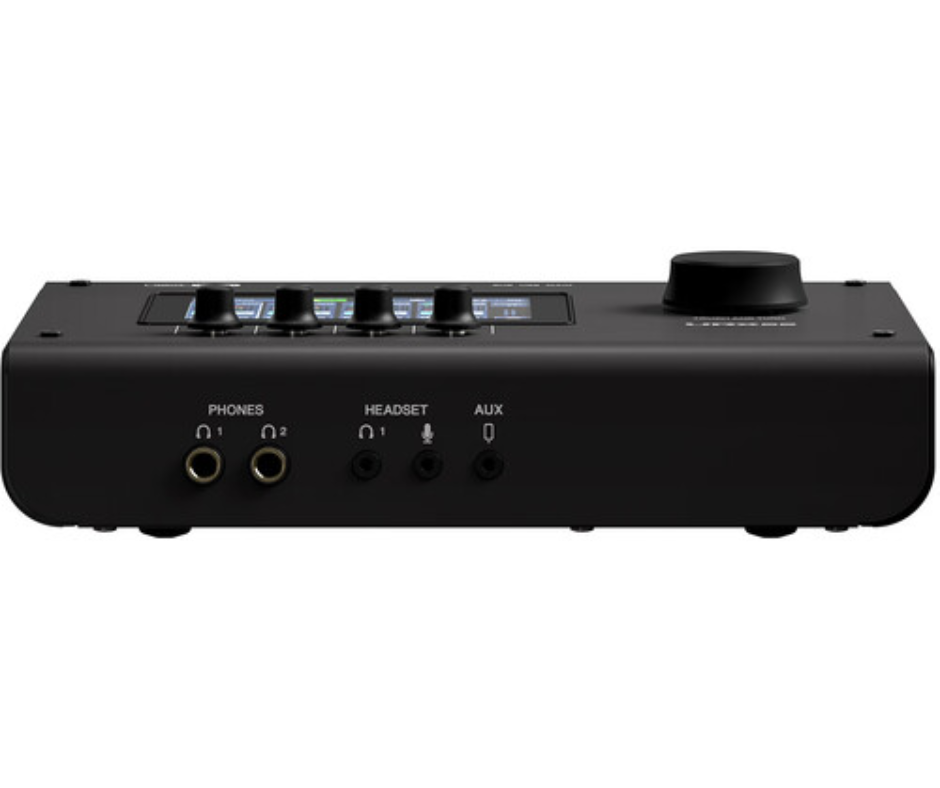

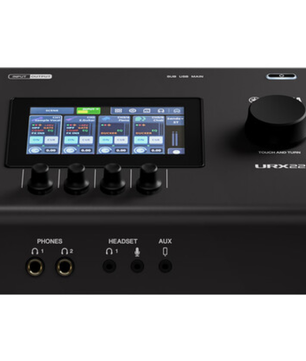

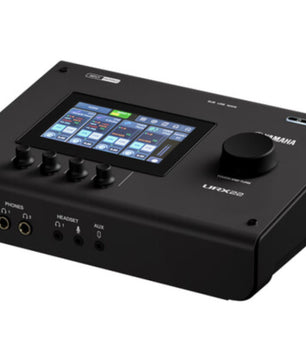

Two combo XLR-1/4" inputs provide 78 dB of gain, supporting a wide range of microphones and instruments. Stereo main and line outputs, dual headphone jacks, and multiple 3.5 mm connections (mic, headset, aux) offer maximum flexibility for routing and monitoring. The built-in 4.3" color touchscreen and four customizable knobs give creators precise, hands-on control.
Unique to the URX22 B are its dual USB-C ports—Main and Sub—allowing integration of multiple audio sources. The Main port supports up to 16-channel recording/playback, while the Sub port offers 2-channel I/O. This design is ideal for scenarios like simultaneous multitrack recording and livestreaming.
Advanced features like Auto Gain, Clip Safe, and Scene Recall ensure clean, consistent sound and fast workflow changes. Whether in a studio, on stage, or live streaming, the URX22 B adapts quickly to your setup. Seamless integration with OBS Studio and Elgato Stream Deck enhances your control even further.
Model Features
- 4x2 USB-C audio interface with 32-bit / 192 kHz resolution
- 4.3" color LCD touchscreen with customizable knob control
- Built-in DSP with EQ, reverb, voice changer, amp sim, and more
- Dual USB-C ports: Main (16-track) and Sub (2-track)
- Advanced assistive tools: Auto Gain, Clip Safe, Ducker, and multiband compression
- Scene Recall for quick setup switching
- Includes Steinberg software suite and MixKey mixer
Model Specifications
- Max Resolution: 32-bit / 192 kHz
- Inputs: 2x XLR-1/4" combo, 1x 3.5mm mic/line, 1x 3.5mm aux, 1x 3.5mm headset

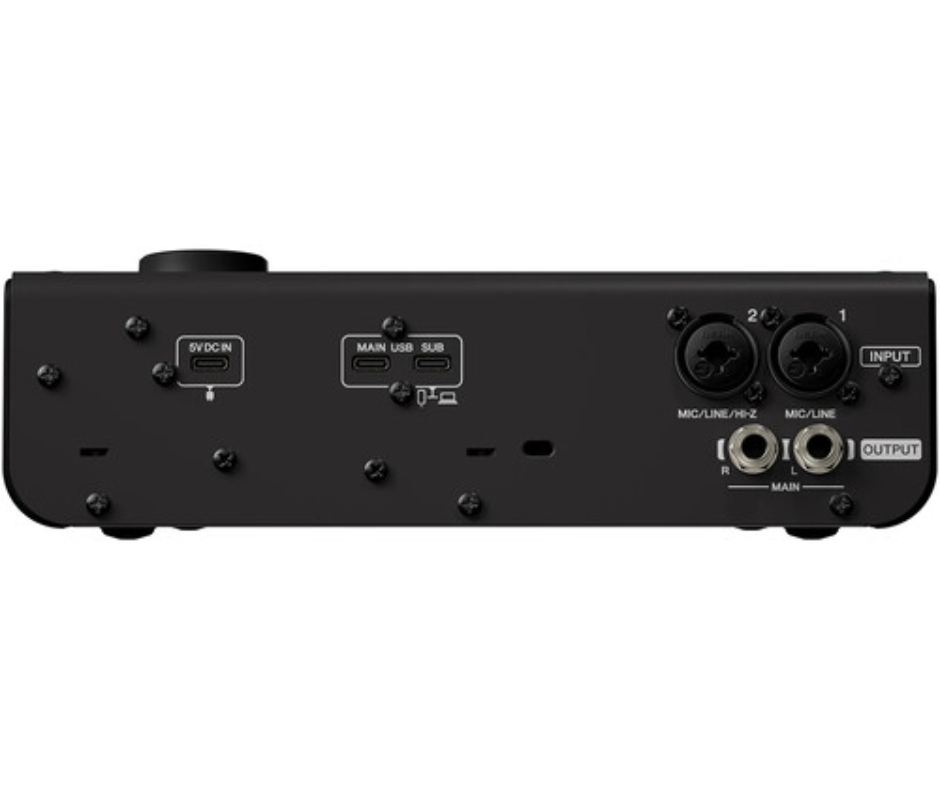

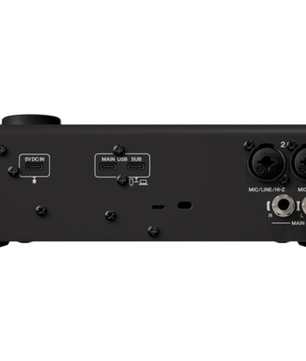

- Outputs: 2x 1/4" TRS main, 2x 1/4" TRS line, 2x 1/4" headphone
- Gain Range: 78 dB
- Dynamic Range: 115 dB (inputs), 125 dB (line outputs)
- THD: 0.0008% (inputs), 0.00036% (outputs)
- Touchscreen: 4.3" color LCD
- USB-C Ports: 2 (Main and Sub)
- Power: USB bus powered, 15W typical
- Dimensions: 9.6 x 7.2 x 3.1 in (24.4 x 18.3 x 7.9 cm)
- Weight: 4.2 lb (1.9 kg)
- UPC: Not confirmed
What's In The Box
- Yamaha URX22 B Interface
- USB-C Cable
- Software Download Information
