USB Audio Interface
Yamaha URX22 W is a high-resolution 4-in/2-out USB-C audio interface engineered for modern creators. With onboard DSP effects, customizable touch controls, and dual USB-C ports for advanced routing, it's perfect for livestreaming, music production, podcasting, and content creation.
Yamaha URX22 W Competitive Differences
- 32-bit / 192 kHz sampling with ultra-low THD
- Dual USB-C ports (Main/Sub) for 16- and 2-track audio routing
Yamaha URX22 W Description

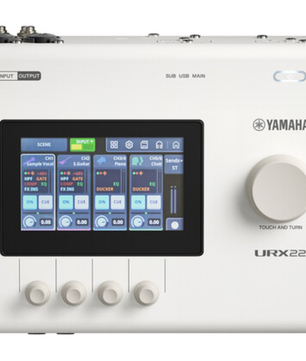

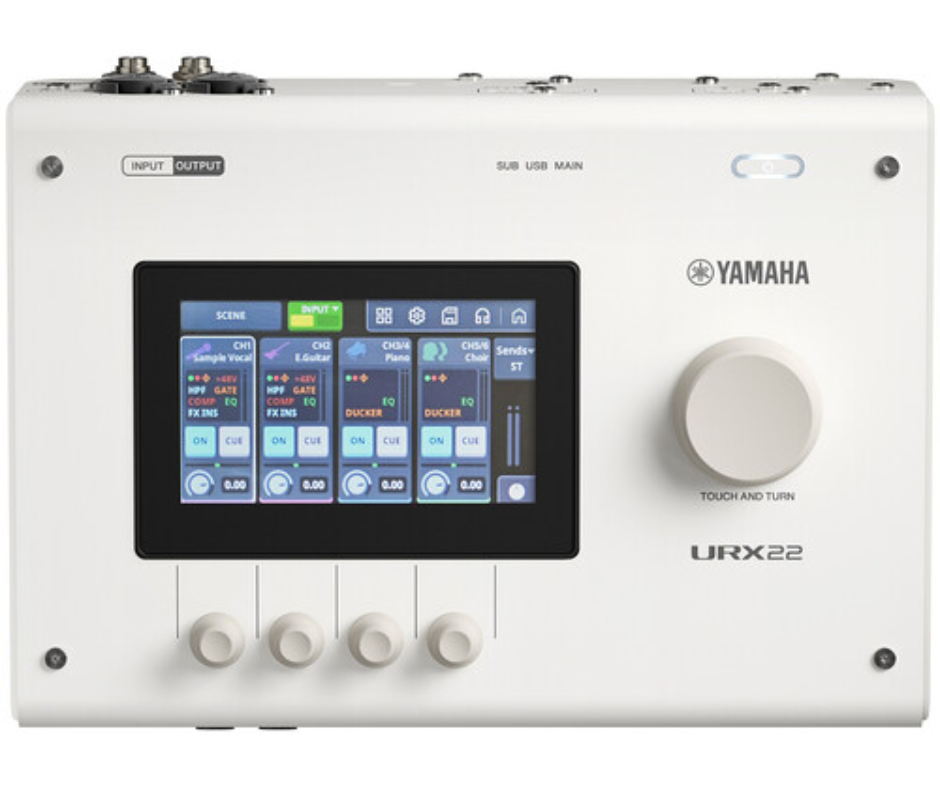

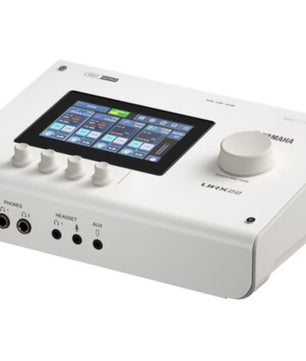

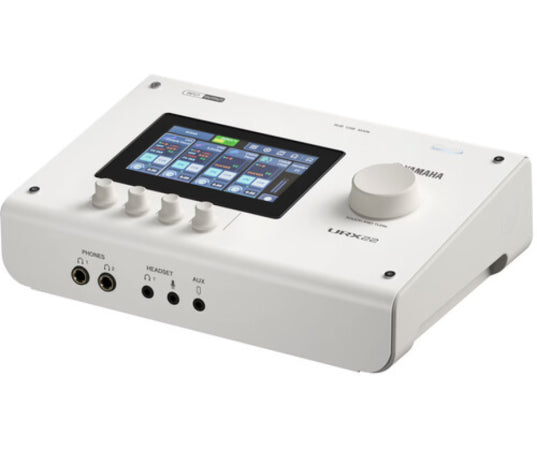

The Yamaha URX22 W brings powerful audio processing and user-friendly controls to the forefront with its 4.3" color touchscreen, four customizable knobs, and real-time DSP mixing. Designed with streamers and musicians in mind, it supports studio-grade 32-bit / 192 kHz audio resolution while offering onboard tools like EQ, compression, reverb, and pitch correction.

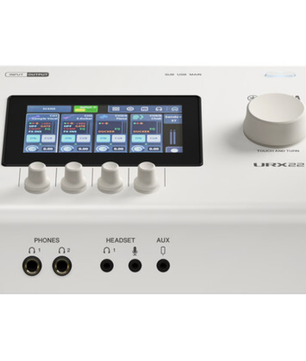

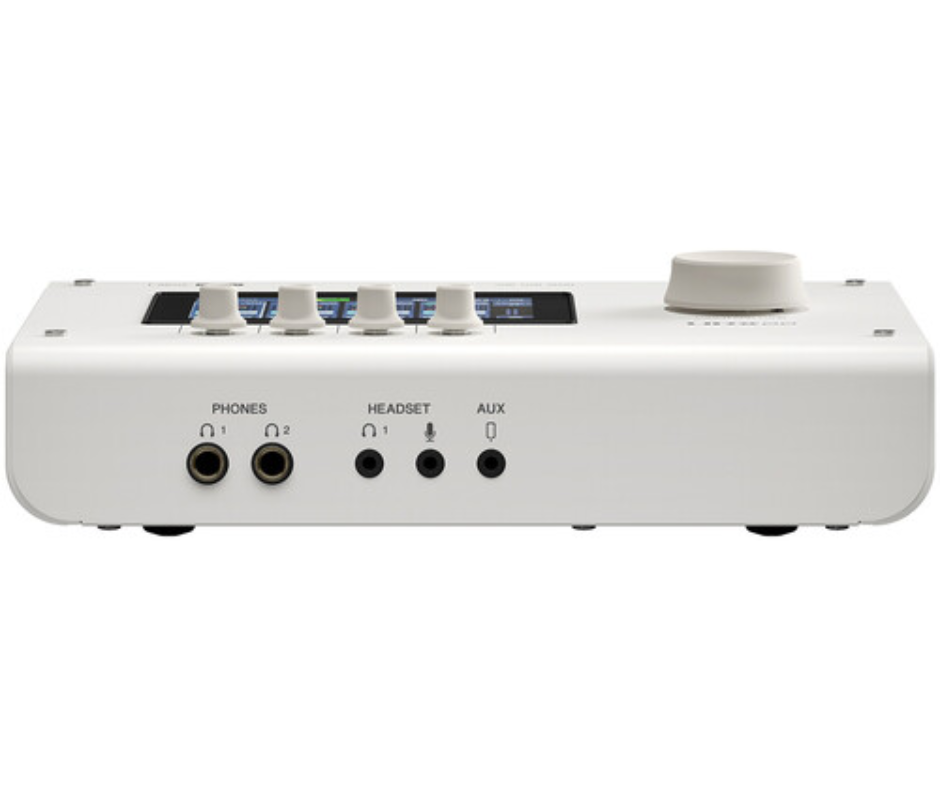

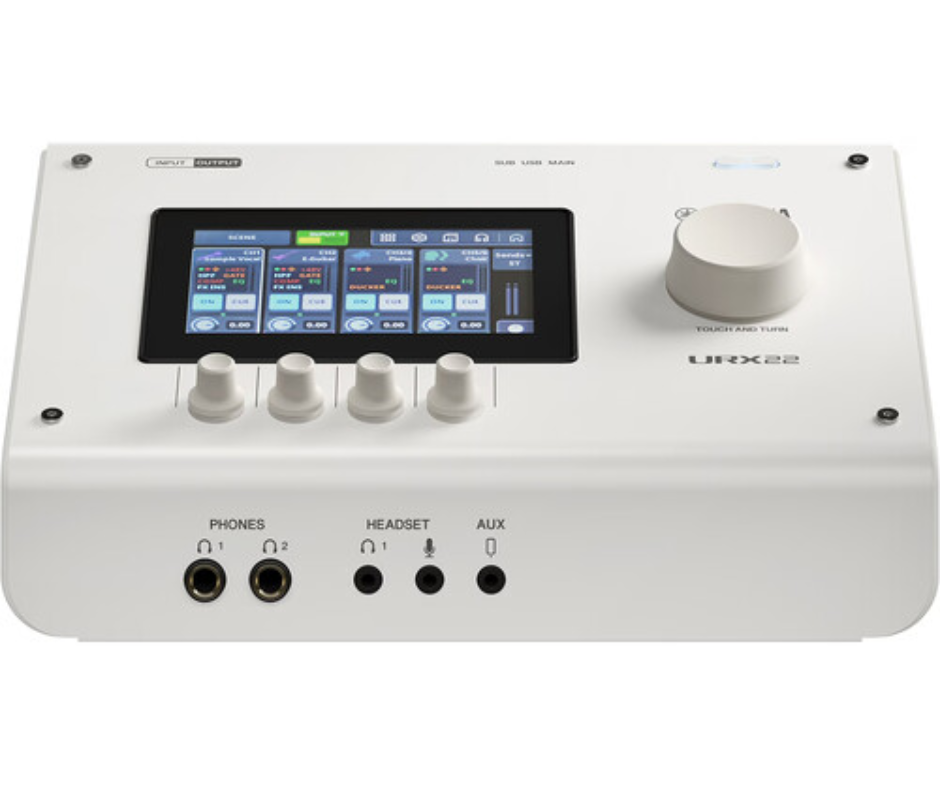

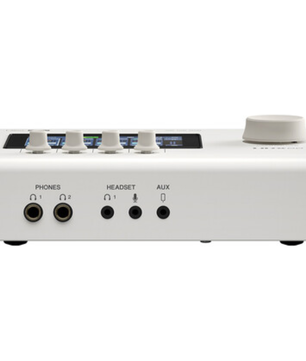

Input options include two combo XLR-1/4" mic/line/Hi-Z jacks and multiple 3.5mm aux, headset, and mic inputs. Outputs include TRS main and line outs, plus dual headphone jacks for collaborative monitoring. Phantom power, up to 78 dB of gain, and a dynamic range up to 125 dB ensure pro-level clarity.

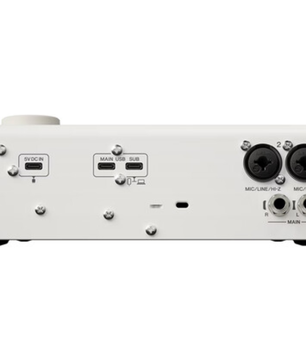

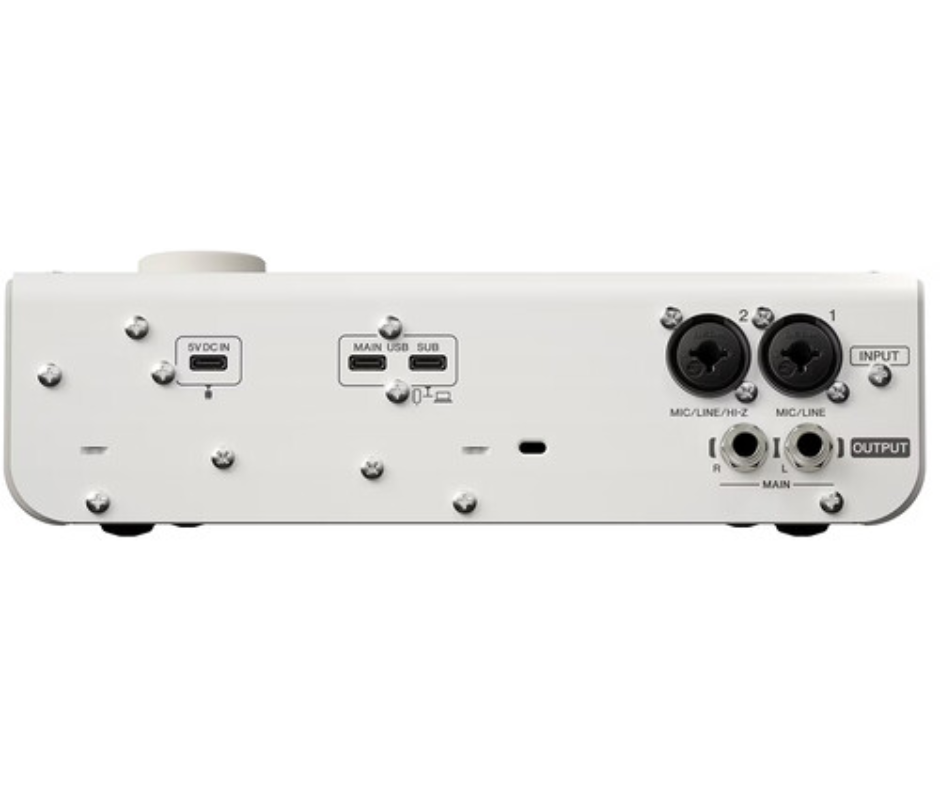

The dual USB-C configuration sets it apart. Use the Main port for full 16-track operation or connect to the Sub port for simultaneous 2-track streaming. This allows for incredibly flexible routing setups across DAWs, streaming platforms, and hardware devices. Assistive tools like Auto Gain, Clip Safe, and Ducker help automate and polish your sound.
Scene Recall enables fast setup changes, and full integration with OBS Studio and Elgato Stream Deck rounds out the URX22 W as a control hub for hybrid workflows. It also comes bundled with a Steinberg software suite and Yamaha’s MixKey mixer to jumpstart your production journey.
Model Features
- 4-in/2-out USB-C interface with 32-bit / 192 kHz resolution
- Touchscreen GUI with 4 customizable control knobs
- Built-in DSP: EQ, gate, compressor, reverb, amp sim, voice changer
- Dual USB-C ports for flexible multi-track and streaming I/O
- Auto Gain, Clip Safe, Ducker, and multiband compression tools
- Scene Recall and Simple Mode for fast setup switching
- Compatible with OBS Studio and Elgato Stream Deck
- Includes Steinberg software and MixKey
Model Specifications
- Max Resolution: 32-bit / 192 kHz
- Inputs: 2x XLR-1/4" combo, 1x 3.5mm mic/line, 1x 3.5mm aux, 1x 3.5mm headset
- Outputs: 2x 1/4" TRS main, 2x 1/4" TRS line, 2x 1/4" headphone
- Gain Range: 78 dB
- Dynamic Range: 115 dB (inputs), 125 dB (line outputs)
- THD: 0.0008% (inputs), 0.00036% (outputs)
- Touchscreen: 4.3" color LCD
- USB-C Ports: 2 (Main and Sub)
- Power: USB bus powered, 15W typical
- Dimensions: 9.6 x 7.2 x 3.1 in (24.4 x 18.3 x 7.9 cm)
- Weight: 4.2 lb (1.9 kg)
- UPC: Not confirmed
What's In The Box
- Yamaha URX22 W Interface
- USB-C Cable
- Software Download Information
