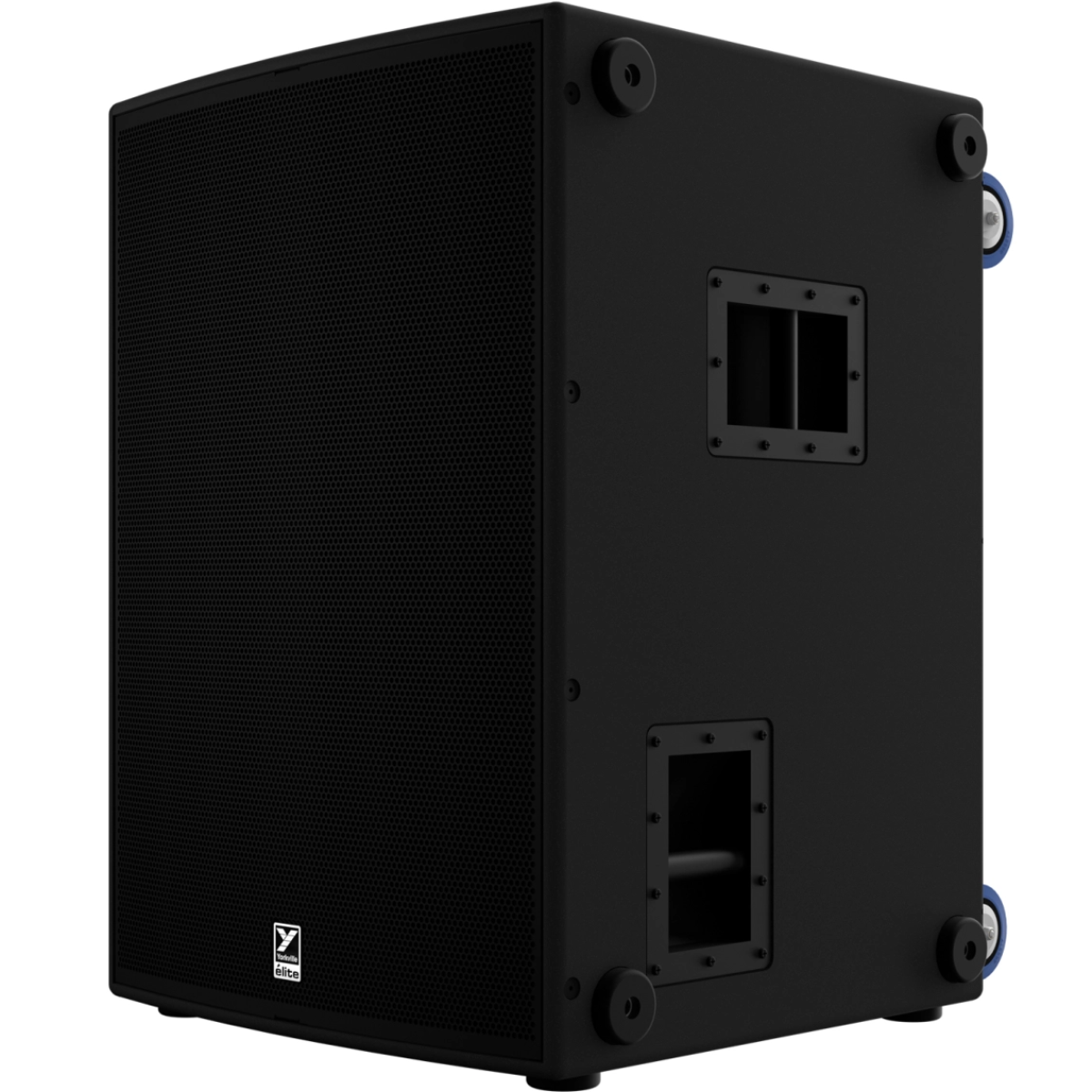

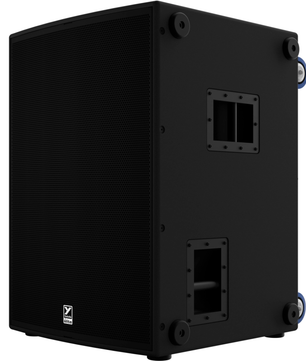

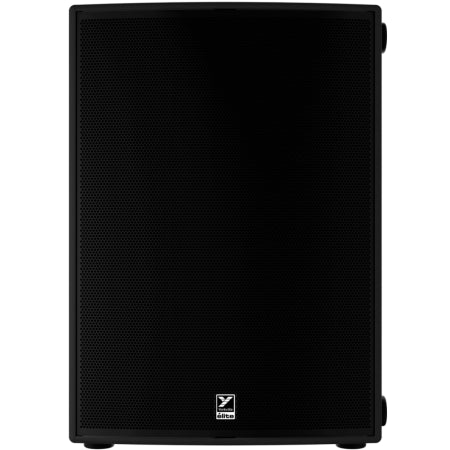

Yorkville EL18S | 18in - 3200W Peak | Powered Elite Subwoofer
Powered PA Subwoofer
Yorkville EL18S is a high-output powered subwoofer designed for professional live sound reinforcement, DJs, venues, and event production. Featuring an 18" woofer with a 4" voice coil and 3200 watts of peak power, it delivers deep, controlled low-frequency performance with exceptional output and clarity.
Yorkville EL18S Competitive Differences
- 3200W peak power with deep bass response down to 35Hz
- Durable 15mm birch plywood cabinet with integrated casters and dual pole mounts
Yorkville EL18S Description
The Yorkville EL18S is engineered to provide powerful low-frequency reinforcement for professional audio systems. Its high-performance 18-inch woofer with a 4-inch voice coil delivers strong bass impact while maintaining clarity and control in demanding live environments.
Powered by a built-in amplifier delivering 3200 watts peak output, the EL18S achieves a maximum SPL of 140 dB peak, making it suitable for mobile DJs, bands, clubs, houses of worship, and event production applications. The subwoofer extends down to 35Hz, providing solid low-end support for modern music playback and live performance.

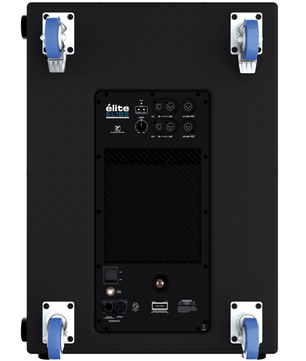

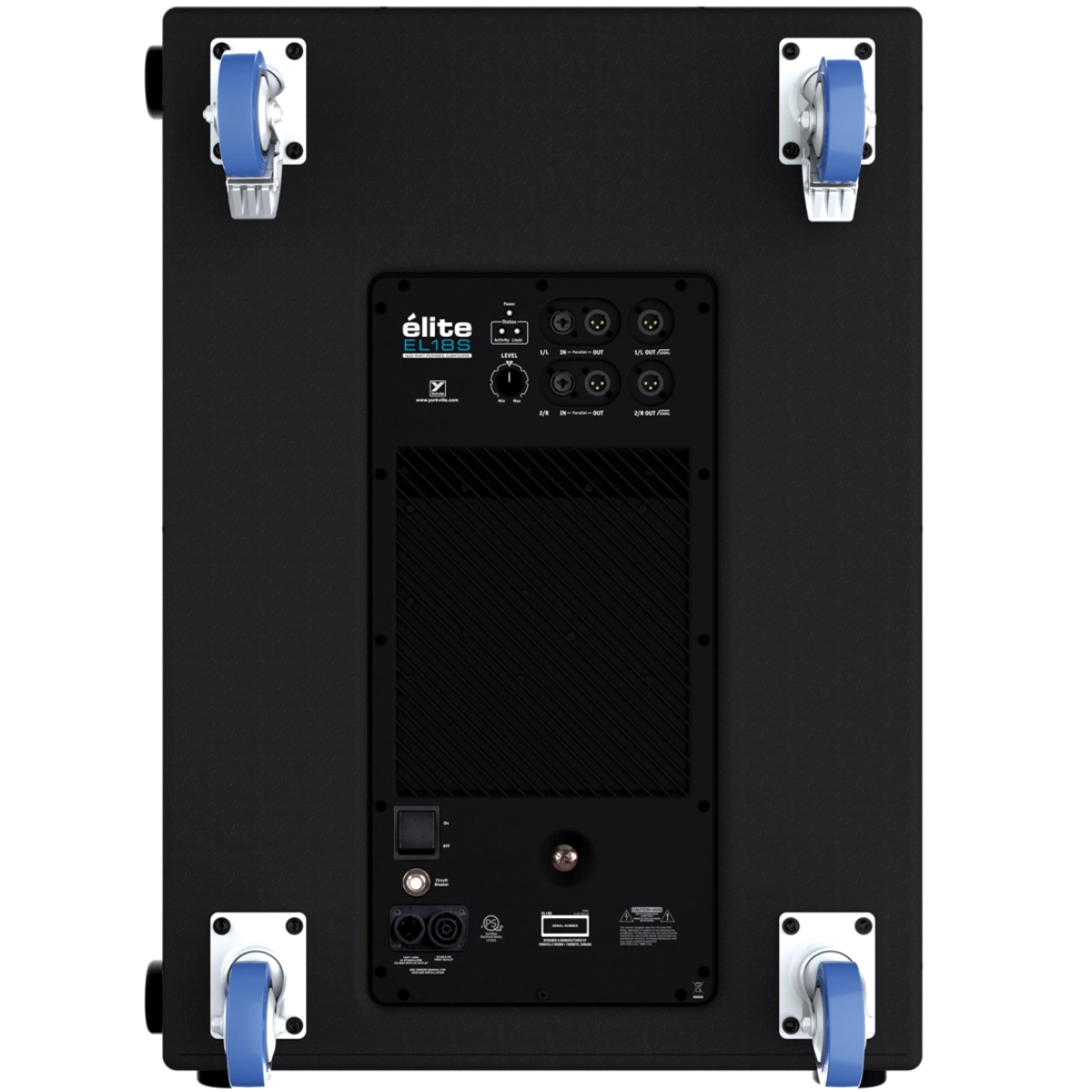

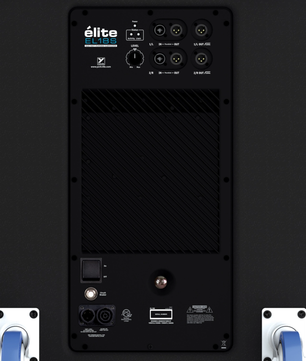

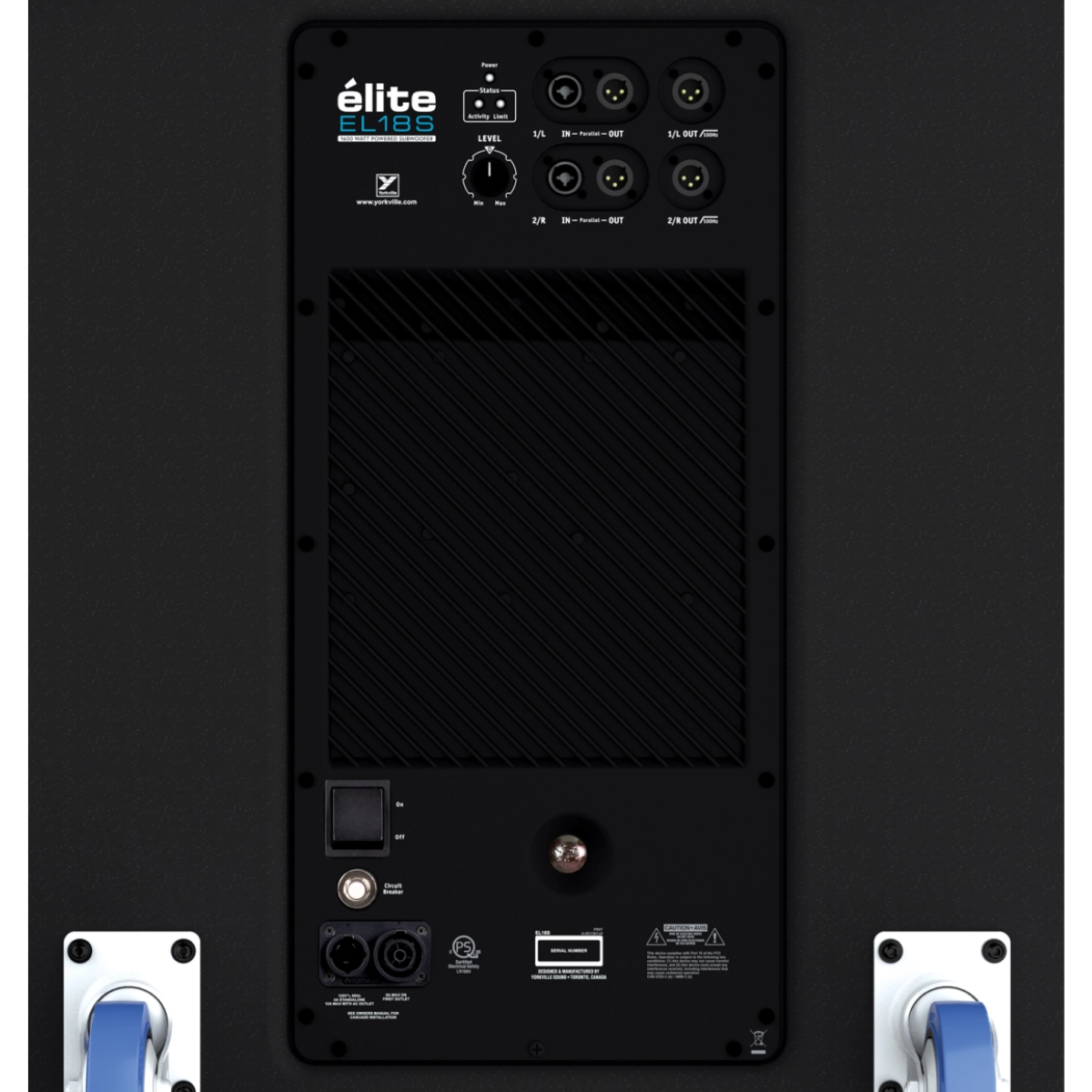

The rear panel includes dual combo XLR/TRS inputs, full-range XLR link outputs, and dedicated high-pass XLR outputs for seamless integration into professional PA systems. An onboard limiter helps protect the system during high-output operation.

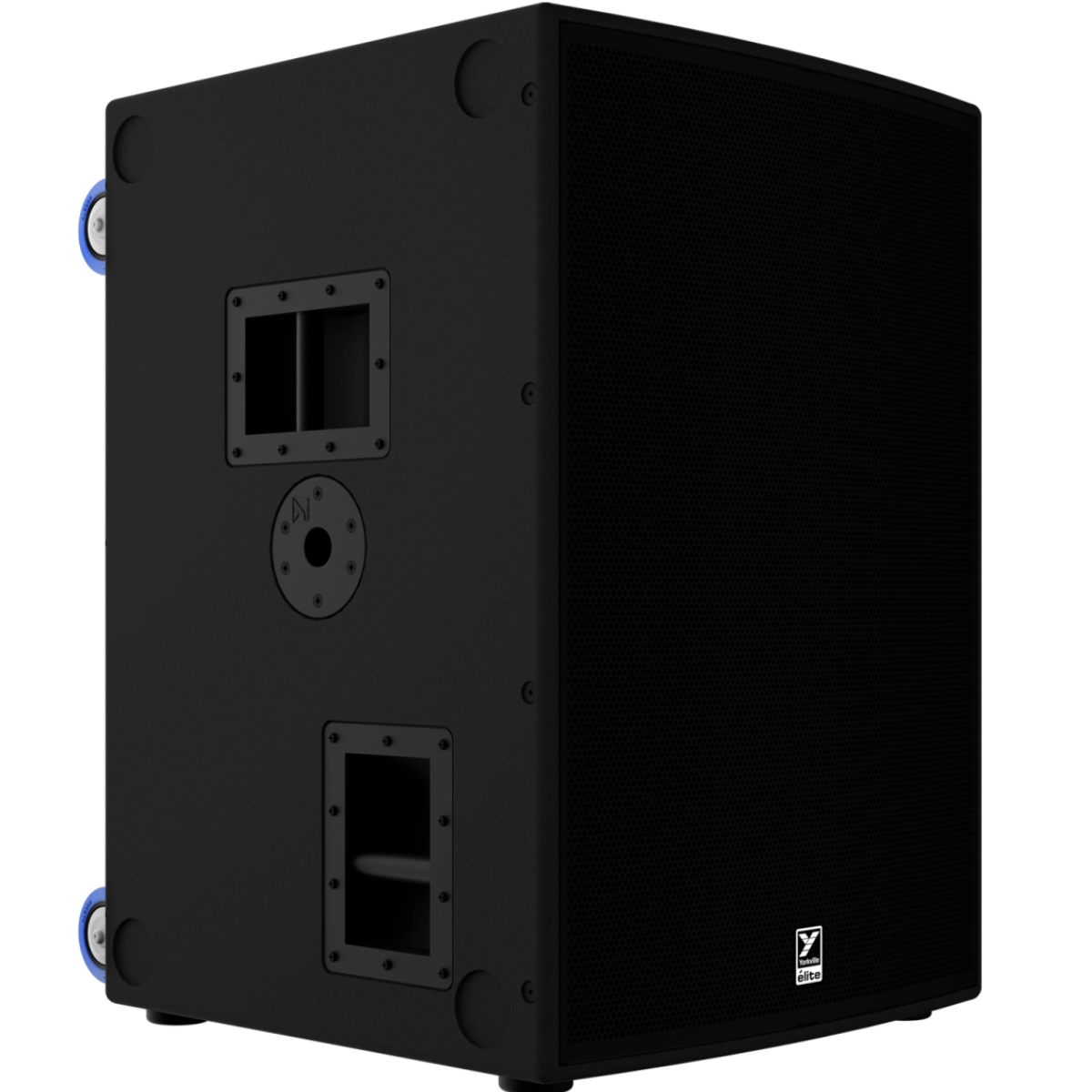

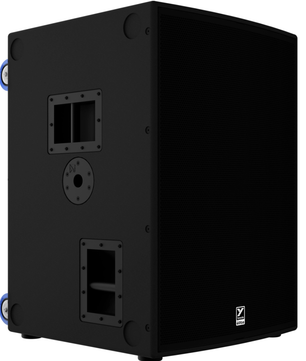

Constructed from rugged 15mm birch plywood and finished with textured paint, the EL18S is designed for road-ready durability. Integrated casters, multiple carry handles, and top and side pole mount adapters provide flexibility for transport and system configuration.
EL18S Features
- Powered 18" subwoofer
- 3200W peak power output
- 1600W program power
- 18" woofer with 4" voice coil
- Onboard limiter protection
- Dual combo XLR/TRS inputs
- Full-range XLR link outputs
- High-pass XLR outputs
- powerCON TRUE1 compatible power connectors
- 15mm birch plywood cabinet construction
- Integrated casters and multiple handles
- Top and side pole mount adapters
- Made in Canada
EL18S Specifications
- System Type: Powered Subwoofer
- Power Rating: 3200W Peak / 1600W Program
- Maximum SPL: 140 dB Peak / 134 dB Continuous
- Frequency Response: 35 Hz – 100 Hz (+/- 3 dB)
- Crossover Frequency: 100 Hz
- LF Driver: 18" woofer with 4" voice coil ceramic magnet
- Inputs: 2 x Combo XLR / 1/4" TRS
- Outputs: 2 x XLR High-Pass, 2 x XLR Full-Range Link
- Power Connectors: powerCON TRUE1 compatible input/output
- Power Consumption: 4A typical / 10A max
- Enclosure Material: 15mm Birch Plywood
- Grille: Powder-Coated Steel
- Finish: Textured Paint
- Dimensions: 24.8 x 25.7 x 35.7 in (63 x 65.3 x 90.7 cm)
- Depth with Casters: 29.8 in (75.7 cm)
- Weight: 176.5 lb (80 kg)
What's In The Box
- Yorkville EL18S Powered Subwoofer
