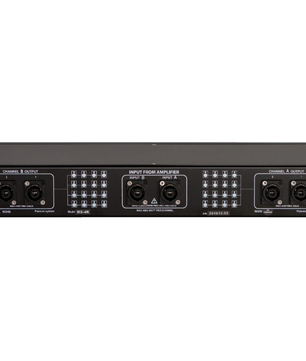

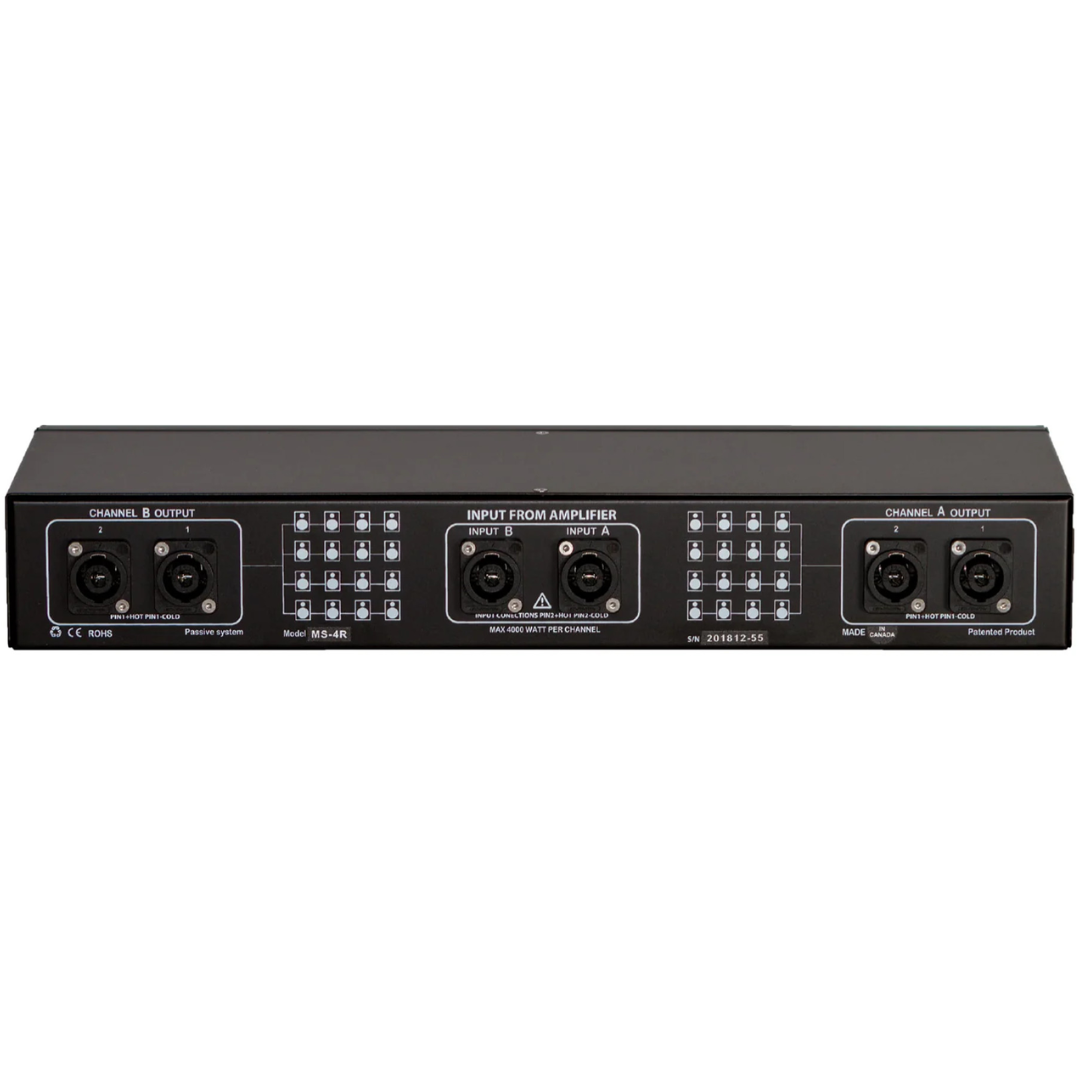

Zero Ohm ZOHM-2K-2 | 2000W/Channel 2-Ch Passive Interface | Sub-1Ω Load Distribution Without Transformers

Zero Ohm ZOHM-2K-2 | 2000W/Channel 2-Ch Passive Interface | Sub-1Ω Load Distribution Without Transformers

$1,154.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Passive Loudspeaker Distribution System

The Zero Ohm ZOHM-2K-2 is a compact, 2-channel passive interface that allows amplifiers to connect to multiple loudspeakers in parallel without overloading due to impedance. This system removes the need for 70V/100V transformers and maintains full-range performance even over extremely long cable runs — making it a powerful tool for scalable audio distribution.

Zero Ohm ZOHM-2K-2 Competitive Differences

2000W per channel passive system for low-impedance speaker arrays
Sub-1Ω compatibility with transformer-free parallel wiring

Zero Ohm ZOHM-2K-2 Description

Known as the “2K2 Renegade” and formerly model MS-2R, the ZOHM-2K-2 is built for audio professionals who need flexibility, efficiency, and clarity in their distributed sound systems. Designed for passive use, this device connects between any amplifier and multiple loudspeakers — supporting ultra-low impedances down to 0.1 ohms without stressing the amplifier. Perfect for houses of worship, large venues, and multi-zone systems, the ZOHM-2K-2 works with speakers of any impedance (2Ω, 4Ω, 8Ω, or 16Ω), and delivers full-range audio from 20Hz to 20kHz. This passive solution also maintains phase accuracy across all channels, making it ideal for high-fidelity installations that span large distances. Made in Canada and housed in a durable rackmount chassis, the Zero Ohm ZOHM-2K-2 is built to simplify the most complex system designs — with no digital processing, no transformers, and no compromise in sound quality.

Model Features

Passive 2-channel interface with zero-ohm compatibility
Eliminates the need for 70V/100V transformer systems
Allows parallel connection of multiple loudspeakers
Compatible with 2Ω, 4Ω, 8Ω, and 16Ω speaker loads
Full-range frequency response: 20Hz – 20kHz
Maintains output phase alignment across amplifiers

Model Specifications

Max Power Handling: 2000W per channel
Frequency Response: 20Hz – 20kHz
Min. Output Impedance: 0.1 Ohms
Input Connectors: Neutrik NL4 (Pin 2+ / 2−)
Output Connectors: Neutrik NL4 (Pin 1+ / 1−)
Dimensions (H x W x D): 65.1 x 479.4 x 149.2 mm (with rack ears)
Weight: 3.2 kg
Shipping Weight: 4 kg
Country of Origin: Canada

What's In The Box

Main unit
Rack ears (pre-installed)
Quick start guide
