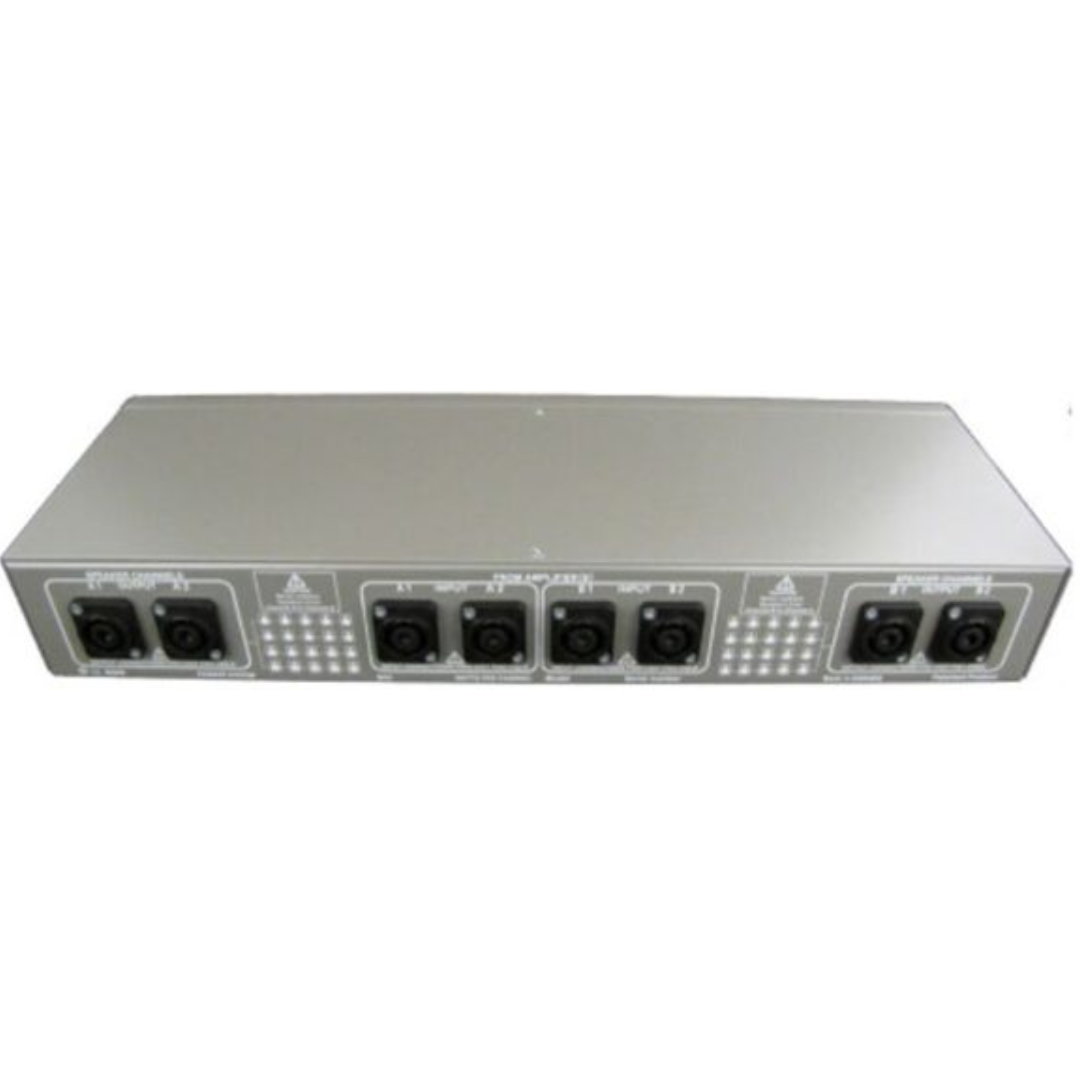

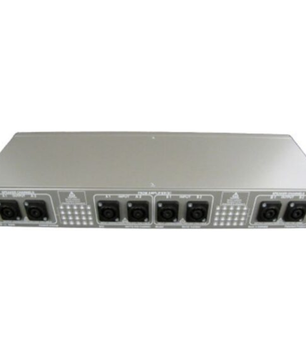

Zero Ohm ZOHM-4K-4 | 4000W/Channel 4-Ch Passive Interface | Sub-1Ω Speaker Loads Without Transformers

Zero Ohm ZOHM-4K-4 | 4000W/Channel 4-Ch Passive Interface | Sub-1Ω Speaker Loads Without Transformers

$2,419.00

Order within [hour] to get by [date_end]

Quantity

Direct Ship from Our Supplier

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Passive Loudspeaker Distribution System

The Zero Ohm ZOHM-4K-4 is a four-channel, high-power passive interface that allows amplifiers to safely drive multiple loudspeakers in parallel — even at impedance levels below 1 ohm. It replaces traditional 70V/100V transformer systems, offering full-range audio fidelity and reliable phase alignment across long cable runs.

Zero Ohm ZOHM-4K-4 Competitive Differences

4-channel, 4000W per channel passive speaker interface
Runs parallel speaker loads at sub-1Ω without transformers

Zero Ohm ZOHM-4K-4 Description

The ZOHM-4K-4, also called the "4K-4 Disruptor," delivers unmatched flexibility for complex loudspeaker arrays. This rackmount system connects between any amplifier and speaker network, enabling multiple speakers to be connected in parallel at extremely low impedances — safely and without compromising sound quality. With support for speaker loads as low as 0.1 ohms, and compatibility with 2, 4, 8, and 16 ohm systems, the ZOHM-4K-4 provides integrators with a powerful alternative to conventional distributed audio solutions. It offers uniform power distribution across long cable runs and retains full-range performance from 20Hz to 20kHz — ideal for large venues, stadiums, and multi-zone environments. Using standard Neutrik NL4 connectors and a clearly labeled I/O layout, the Zero Ohm ZOHM-4K-4 ensures clean signal routing with precise channel control. Built in Canada, it’s a rugged, passive solution for high-demand professional installs.

Model Features

Passive 4-channel distribution system with zero-ohm functionality
No transformers required — eliminates need for 70V/100V systems
Connect multiple loudspeakers in parallel with sub-1Ω impedance
Compatible with 2Ω, 4Ω, 8Ω, and 16Ω speaker loads
Maintains phase alignment and full-range frequency response (20Hz–20kHz)

Model Specifications

Max Power Handling: 4000W per channel
Frequency Response: 20Hz – 20kHz
Min. Output Impedance: 0.1 Ohms
Input Connectors: Neutrik NL4
Input Pin-Outs:
- Ch 1 Input 1A: Pin 1+ / 1−
- Ch 2 Input 2A: Pin 2+ / 2−
- Ch 3 Input 1B: Pin 2+ / 2−
- Ch 4 Input 2B: Pin 1+ / 1−
Output Pin-Outs:
- Ch 1 Output 1A: Pin 1+ / 1−
- Ch 2 Output 2A: Pin 2+ / 2−
- Ch 3 Output 1B: Pin 2+ / 2−
- Ch 4 Output 2B: Pin 1+ / 1−
Dimensions (H x W x D): 65.1 x 479.4 x 149.2 mm (with rack ears)
Weight: 5 kg
Shipping Weight: 5.5 kg
Country of Origin: Canada

What's In The Box

Main unit
Rack ears (pre-installed)
Quick start guide
